148mm DVB-1408
Description

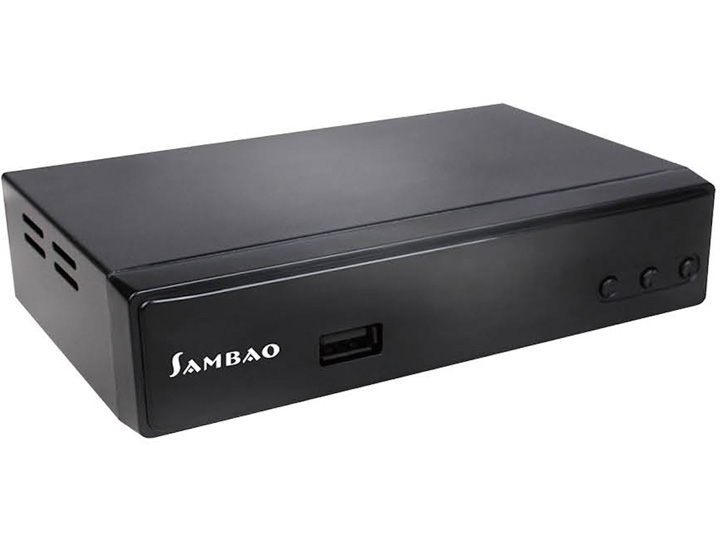

DVB-T2 DVB-1408
Size:148x35mm
Main Features:
1. Multi OSD languages
2. Media playback(MP3,WMA,FLAC,JPG,MPG,MPEG,VOB, AVI,TS,TRP,M2T,M2TS,MP4,MKV,MOV
3. Record through USB HDD
4. Timeshift through USB HDD
5. 7 days EPG(Electronic Program Guide)
6. DVB subtitle 15. LCN
7. VBI/OSD Telext 16. OTA upgrade(optional)
8. Easy first installation
9. Channel search with automatic/manual
10. TV and radio list handing
11. Favorite list editing for both radio and TV
12. Parents lock
13. Aspect ratio handing
14. Timer setting
15.OTA Upgrade(optional_
SPECIFICATION
◆ System
DDR II: 512M bit
Flash Size: 32M bit
◆ Tuner & Channel
RF Input Connector: IEC FEMALE
Receiving Channel Range:174-230MHz, 470-862MHz
Modulation: QPSK/16QAM/64QAM/256QAM
OFDM Spectrum: 1K, 2K, 4K, 8K, 16K and 32K
Band Width: 7MHz, 8MHz
◆ Audio decoding
MPEG-1,MPEG-2(Layer I/II),MP3,AC-3(optional),
E-AC-3(optional),AAC-LC,HE-AAC 5.1
◆ Video decoding
Standard:MPEG-2 MP@HL,MPEG-4 SP,DIVXI 3.11(option)
4.X, 6.X, FLV Format, H.264 MP@HL,VC-1,
RM&RMVB(optional)
Aspect RATIO: 4:3/16:9/Letterbox/selectable
Video Resolution:1080p,1080i,720p,576p,576i,480p,480i
◆ Rear panel
RF Input
RF Output
L/R Output, Composit Video Output
Coaxial Output
HDMI output
◆ Front panel
LED light: power/standby
1x USB 2.0 PVR ready
◆ Power specification
Input Voltage: AC176 ~ 264V, 50/60Hz
Power Consumption : ≤8W max.
Standby Power Consumption: ≤1W max.
ACCESSORIES
◆Remote Control :1pcs
◆AV cable:1pcs
◆User manual : 1pc 1-language
