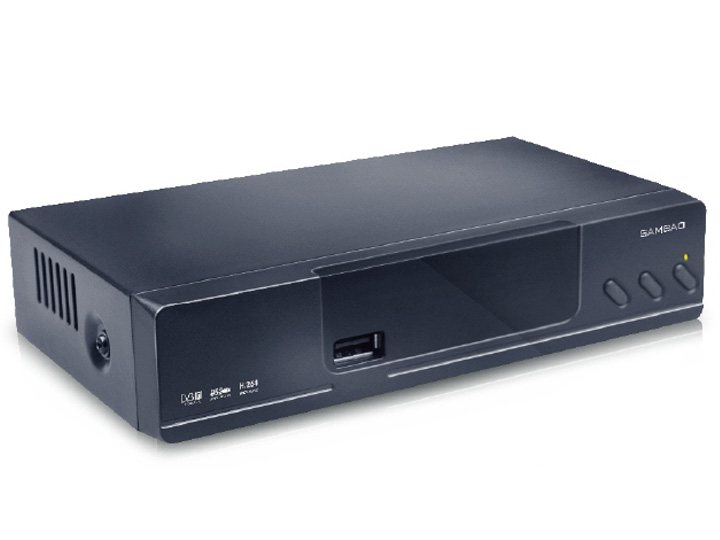

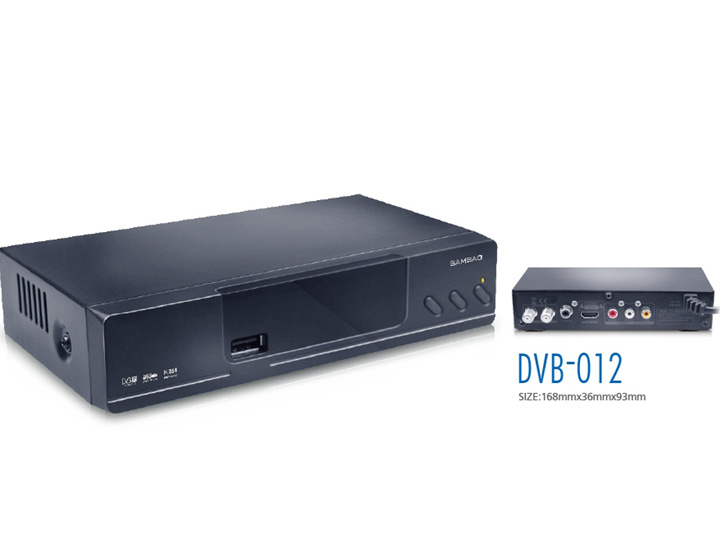

168mm DVB-012

DVB-T2 DVB-012

Size:168x36x93mm

Main Features：

1. Multi OSD languages

2. Media playback(MP3,WMA,FLAC,JPG,MPG,MPEG,VOB, AVI,TS,TRP,M2T,M2TS,MP4,MKV,MOV

3. Record through USB HDD

4. Timeshift through USB HDD

5. 7 days EPG(Electronic Program Guide)

6. DVB subtitle 15. LCN

7. VBI/OSD Telext 16. OTA upgrade(optional)

8. Easy first installation

9. Channel search with automatic/manual

10. TV and radio list handing

11. Favorite list editing for both radio and TV

12. Parents lock

13. Aspect ratio handing

14. Timer setting

15.OTA Upgrade(optional_

SPECIFICATION

◆ System

DDR II: 512M bit

Flash Size: 32M bit

◆ Tuner & Channel

RF Input Connector: IEC FEMALE

Receiving Channel Range:174-230MHz, 470-862MHz

Modulation: QPSK/16QAM/64QAM/256QAM

OFDM Spectrum: 1K, 2K, 4K, 8K, 16K and 32K

Band Width: 7MHz, 8MHz

◆ Audio decoding

MPEG-1,MPEG-2(Layer I/II),MP3,AC-3(optional),

E-AC-3(optional),AAC-LC,HE-AAC 5.1

◆ Video decoding

Standard:MPEG-2 MP@HL,MPEG-4 SP,DIVXI 3.11(option)

4.X, 6.X, FLV Format, H.264 MP@HL,VC-1,

RM&RMVB(optional)

Aspect RATIO: 4:3/16:9/Letterbox/selectable

Video Resolution:1080p,1080i,720p,576p,576i,480p,480i

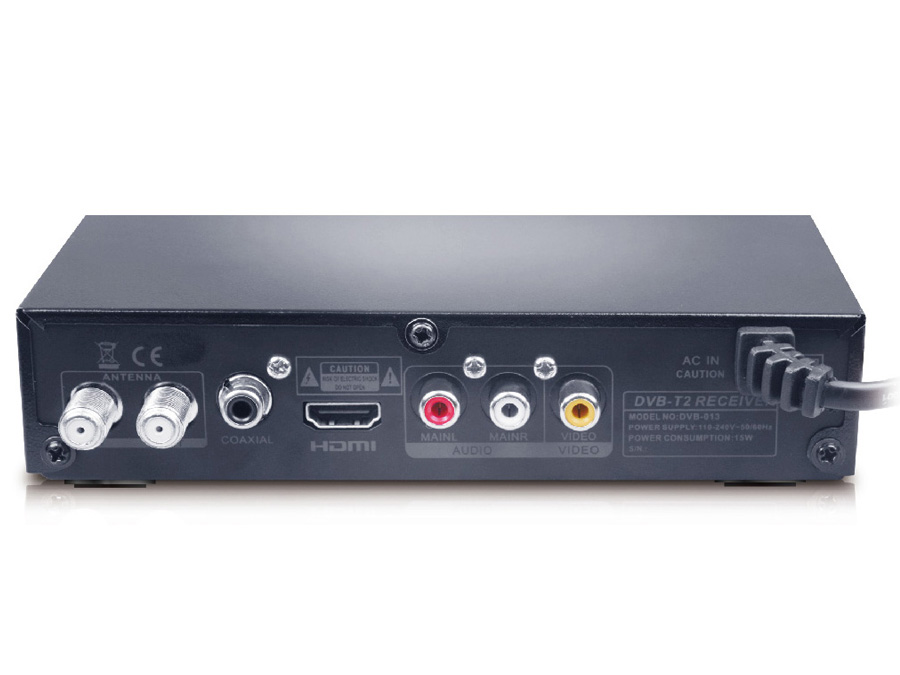

◆ Rear panel

RF Input

RF Output

L/R Output, Composit Video Output

Coaxial Output

HDMI output

◆ Front panel

LED light: power/standby

1x USB 2.0 PVR ready

◆ Power specification

Input Voltage: AC176 ~ 264V, 50/60Hz

Power Consumption : ≤8W max.

Standby Power Consumption: ≤1W max.



ACCESSORIES

◆Remote Control :1pcs

◆AV cable:1pcs

◆User manual : 1pc 1-language
