DVB-T2 and DVB-S2 combo receiver
Description
Full DVB-T2/T and DVB-S2 combo receiver with USB media playback

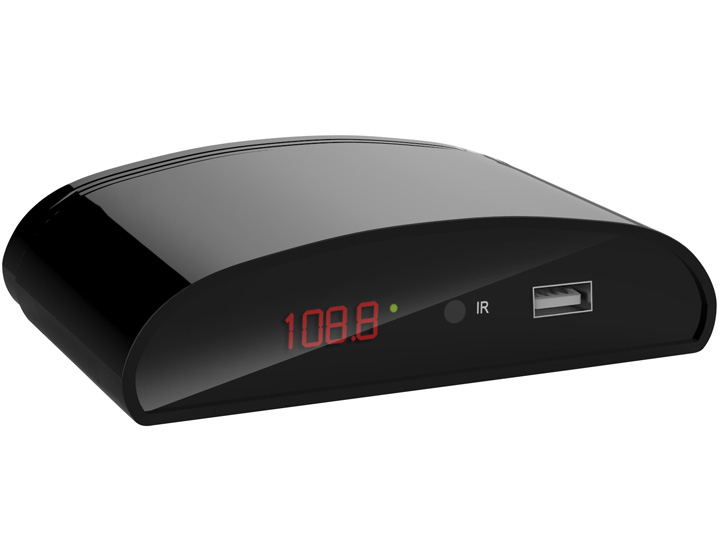

DVB-T2 and DVB-S2 combo receiver
Specifications:
DVB-T2 AND DVB-S2 combo receiver, access to DVB-T2/T and DVB-S2/S channels with one box
Fully SD/HD DVB-T/T2 (V1.3.1) and DVB-S2/S compliant, support full HD 1080p
Supports SD/HD MPEG2 and MPEG4 AVC H.264
SCPC & MCPC receivable from C/Ku band satellites
DiSEqC 1.0/1.1/1.2/1.3 (USALS) supported
Fast automatic blind scan of symbol rates and carrier frequencies of satellite channels
Auto and manually scan all available TV and radio channels
Powerful and highly effective 7-day EPG function
Multi-language menu, subtitle and audio output supported
USB 2.0 for PVR, Timeshift, software upgrade and media files playback
Support aspect ratio 16:9, 4:3, pan & scan, letter box.
Support parental control and Teletext
Easy to use and attractive menu
Support software upgrade by OTA
Support various media files playback as below:
Music: MP3, WMA
Photo: JPEG, BMP, PNG
Video: MKV, AVI, DIVX, XVID, MOV, VOB, DAT, MPG, MP4 and TS
Tuner and demodulation parameter:
DVB-T2 DVB-S2
RF input frequency: 42-1002MHz, 850 to 2,300MHz
Bandwith: 6/ 7/8MHz
Demodulation: QPSK, 16QAM, 64QAM, 256QAM QPSK, 8PSK, 16APSK, 32APSK
Code rate: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 1/2, 2/3, 3/5, 3/4, 4/5, 5/6, 8/9, 9/10
Guard: from 1/128 to 1/4
FFT modes: 1K, 2K, 4K, 8K, 16K & 32K
Main chipset: SPHE1505A
